Double Deep Q-Network (Double DQN)¶

Paper Link: AAAI, ArXiv, Double Q-learnig

Double Deep Q-Network (Double DQN) is an enhancement of the original Deep Q-Network (DQN) algorithm, designed to address the issue of overestimation of Q-values, which is a common problem in Q-learning-based methods. Overestimation occurs when the Q-learning algorithm selects actions based on a maximum Q-value that might be overestimated due to noise or approximation errors. This can lead to suboptimal policies and unstable training.

This table lists some general features about Double DQN algorithm:

Features of Double DQN	Values	Description
On-policy	❌	The evaluate policy is the same as the target policy.
Off-policy	✅	The evaluate policy is different from the target policy.
Model-free	✅	No need to prepare an environment dynamics model.
Model-based	❌	Need an environment model to train the policy.
Discrete Action	✅	Deal with discrete action space.
Continuous Action	❌	Deal with continuous action space.

The Risk of Overestimating¶

In standard DQN, overestimation occurs due to the use of a single Q-network for both selecting and evaluating actions.

As introduced before, DQN updates the Q-value for a state-action pair \(Q(s, a)\) by using the maximum of Q-value of the next state \(\max_{a'}Q(s', a')\) as part of the target.

If the Q-network overestimates one or more state-action values, the overestimation propagates and accumulates over time. This will result in overly optimistic Q-values which can lead to unstable training and cause policy to favor suboptimal actions.

Overestimating biases the agent toward actions that appear better than they are, potentially leading to poor decision-making and performance degradation in complex environments.

Besides, if overestimation becomes severe, it can destablize training, causing the Q-values to diverge.

Main Idea¶

The main idea of Double DQN is to decouple the action selection and action evaluation processes, reducing the risk of overestimating Q-values. This is achieved by maintaining two separate Q-value estimation steps:

Action Selection: Use the current Q-network to select the best action for a given state.

\[ a^* = \arg\max_{a}Q(s', s; \theta). \]

Action Evaluation: Use the target Q-network to evaluate the value of the selected action.

\[ y = r + \gamma Q(s', a*;\theta^{-}). \]

Then, update the Q-network by minizing the loss:

\[ L(\theta) = \mathbb{E}_{(s, a, s', r) \sim \mathcal{D}}[(y-Q(s, a; \theta))^2]. \]

Finally, don’t forget to update the target networks: \(\theta^{-} \leftarrow \theta\).

Compare with DQN¶

To figure out the difference between DQN and Double DQN more clearly, we can rewrite the calculating of target value in DQN and compare them from the formulae listed as following:

\[\begin{split} \begin{align} & y = r + \gamma Q(s', \arg\max_{a'}Q(s', a'; \theta^{-}); \theta^{-}) & \hspace{1cm} \text{(DQN)}\\ & y = r + \gamma Q(s', \arg\max_{a'}Q(s', a'; \theta); \theta^{-}) & \hspace{1cm} \text{(Double DQN)} \end{align} \end{split}\]

It can be found that the main difference between DQN and Double DQN is the greedy action that is evaluated by the target Q-network. DQN evaluates the greedy action according to the target Q-network itself, while Double DQN evaluates the greedy action according to the online Q-network.

Framework¶

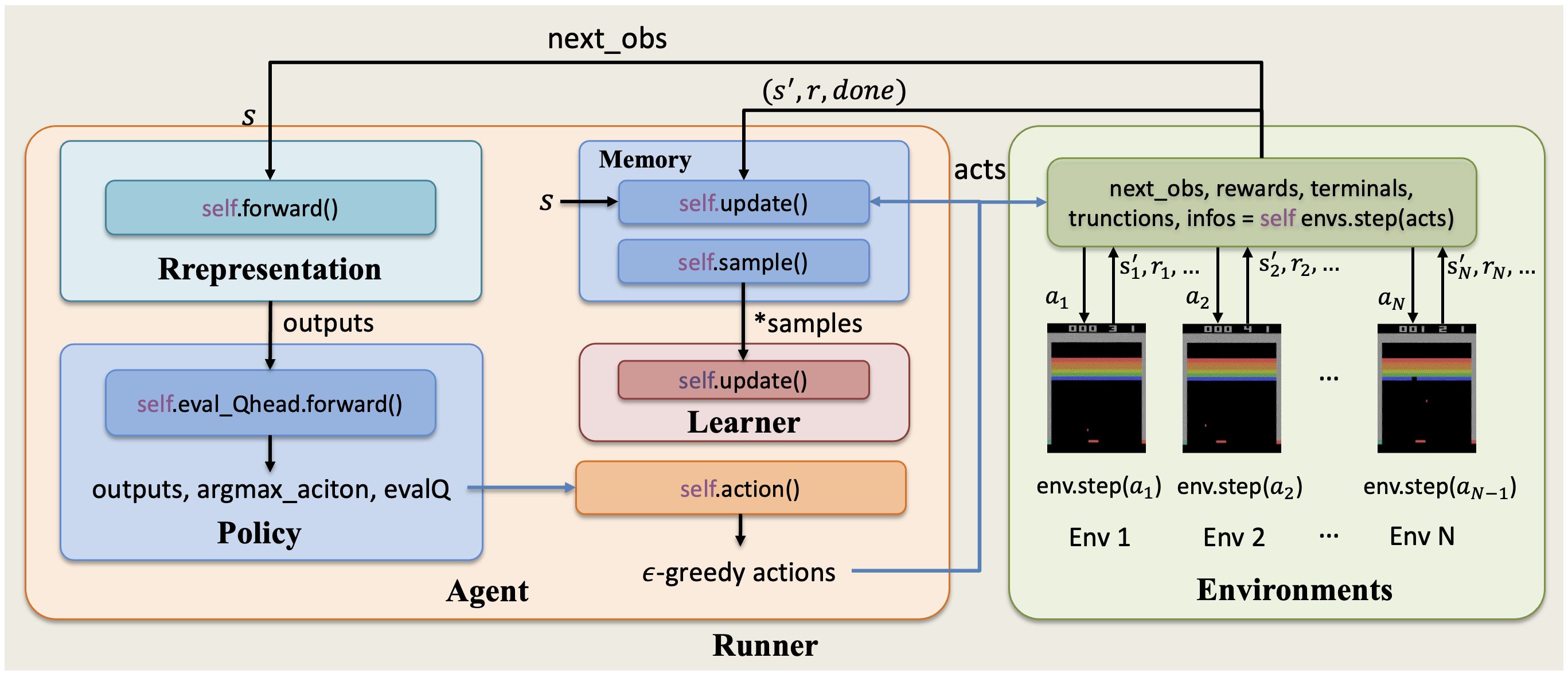

The overall agent-environment interaction of Double DQN, as implemented in XuanCe, is illustrated in the figure below.

Run Double DQN in XuanCe¶

Before running Double DQN in XuanCe, you need to prepare a conda environment and install xuance following the installation steps.

Run Build-in Demos¶

After completing the installation, you can open a Python console and run Double DQN directly using the following commands:

import xuance
runner = xuance.get_runner(method='ddqn',
                           env='classic_control',  # Choices: claasi_control, box2d, atari.
                           env_id='CartPole-v1',  # Choices: CartPole-v1, LunarLander-v2, ALE/Breakout-v5, etc.
                           is_test=False)
runner.run()  # Or runner.benchmark()

Run With Self-defined Configs¶

If you want to run Double DQN with different configurations, you can build a new .yaml file, e.g., my_config.yaml. Then, run the Double DQN by the following code block:

import xuance as xp
runner = xp.get_runner(method='ddqn',
                       env='classic_control',  # Choices: claasi_control, box2d, atari.
                       env_id='CartPole-v1',  # Choices: CartPole-v1, LunarLander-v2, ALE/Breakout-v5, etc.
                       config_path="my_config.yaml",  # The path of my_config.yaml file should be correct.
                       is_test=False)
runner.run()  # Or runner.benchmark()

To learn more about the configurations, please visit the tutorial of configs.

Run With Custom Environment¶

If you would like to run XuanCe’s Double DQN in your own environment that was not included in XuanCe, you need to define the new environment following the steps in New Environment Tutorial. Then, prepapre the configuration file ddqn_myenv.yaml.

After that, you can run Double DQN in your own environment with the following code:

import argparse
from xuance.common import get_configs
from xuance.environment import REGISTRY_ENV
from xuance.environment import make_envs
from xuance.torch.agents import DDQN_Agent

configs_dict = get_configs(file_dir="dqn_myenv.yaml")
configs = argparse.Namespace(**configs_dict)
REGISTRY_ENV[configs.env_name] = MyNewEnv

envs = make_envs(configs)  # Make parallel environments.
Agent = DDQN_Agent(config=configs, envs=envs)  # Create a DDPG agent from XuanCe.
Agent.train(configs.running_steps // configs.parallels)  # Train the model for numerous steps.
Agent.save_model("final_train_model.pth")  # Save the model to model_dir.
Agent.finish()  # Finish the training.

Citations¶

@article{hasselt2010double,
  title={Double Q-learning},
  author={Hasselt, Hado},
  journal={Advances in neural information processing systems},
  volume={23},
  year={2010}
}

@inproceedings{van2016deep,
  title={Deep reinforcement learning with double q-learning},
  author={Van Hasselt, Hado and Guez, Arthur and Silver, David},
  booktitle={Proceedings of the AAAI conference on artificial intelligence},
  volume={30},
  number={1},
  year={2016}
}
